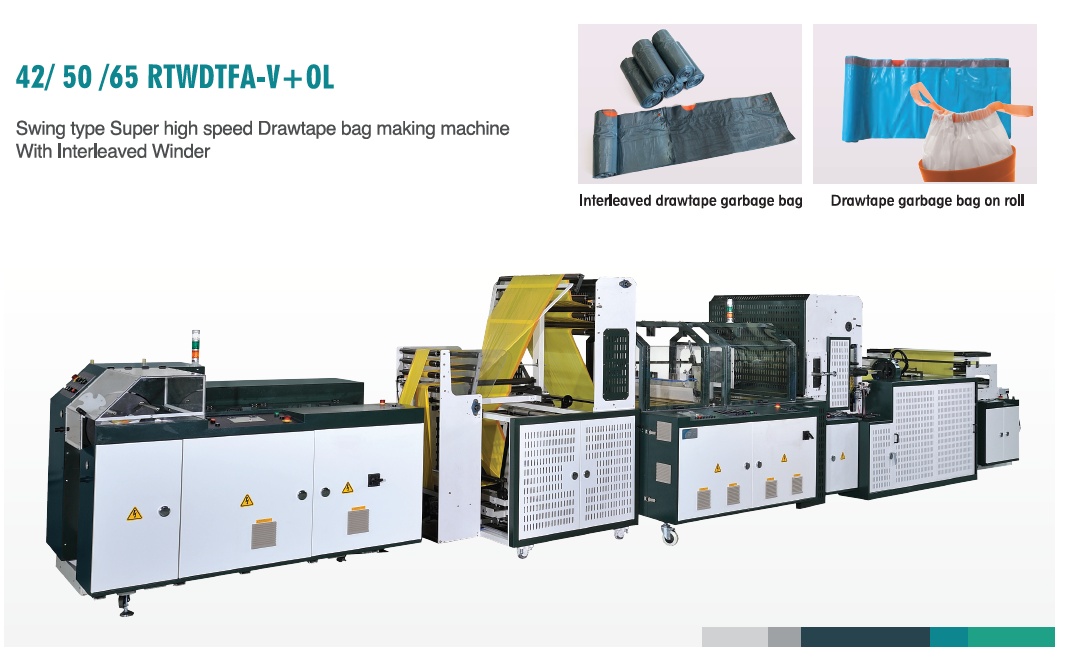

93-A: New Drawtape Bag Machine With Interleaved Winder - RDTWFA-V+OL
Issue 93-A
 |
| ISSUE 93-A 93-A: New Drawtape Bag Machine With Interleaved Winder - RDTWFA-V+OL |
2024-08-16 |
|
|
|
 |
 |
Swing type sealing & Interleaved winder |
|
|
Continuous feeding & Intervals
Swing type sealing usesmultiple servo units to synchronize the movement of the rollersin opposite direction of the film feeding.
It’sideal for thick bag production with long feeding length. It also speed up the production of all bag on roll products by triple times.
Benefits:
1. Non-stop infeeding & outfeeding during sealing process, high speed production @120-150m/min.
2.Tensionless sealing for thick bag, to avoid elongation ofweld line for large bag and thick bag.
Interleaved Winder

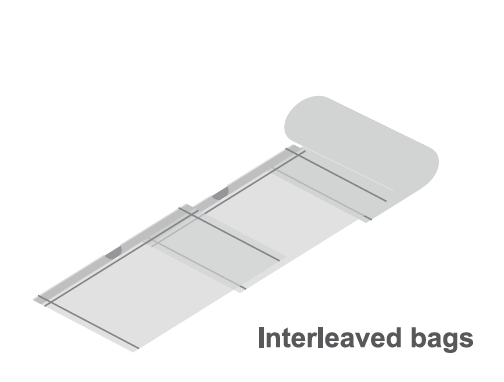

Interleaved bag products for domestic use are becoming increasingly popular for its easy-use, since the consumers don’t need to tear off the bags anymore.
Interleaved winder unit could produceinterleaved drawtape bag or flat bag at speed 120m/min, and it’s also applicable to following bag types:
●Flat garbage bags
●C-folded garbage bags
●Starseal garbage bags
●S-shape garbage bags
●Drawtape garbage bags
|
|
 |
PLAS ALLIANCE is focusing on developing various bag making machines, until now, we aim at providing the total solution for whole packaging production line. With this PAL Express, we are pleased to share our packaging knowledge with you. Stay tuned with us! We will keep you updated with the latest market trend.
 |
|
 |
|
