Swing type S-shape garbage bag on roll making machine + Rotary die system
RTSWFA-VR
- Swing-type sealing system - Servo synchronized swinging sealing knife isolate the film feeding while sealing. Allows high speed non-stop film feeding and good sealing performance with required sealing time.
- Servo driven rotary die cut - Servo driven rotary cutter synchronized with film feeding for high speed & stable performance. Rotary knife makes clean cuts and long service life. For T-shirt bag production includes vacuum waste removal system.
- Servo driven fully automatic rewinder - Fully automatic non-stop system inserts paper core & change finished roll. Coreless rewinder uses 2 sets of forks for automatic non-stop finished roll change. Servo-driven rewinder for high speed rewinding and fast response.
- High speed hot-cut system：Upper sealing blade & bottom heating wire makes strong and high speed sealing. Seperated upper and bottom temperature control for easy micro-adjustment.
- Synchronized Feeding and cutting speed：Inverter controlled feeding matching main machine speed for easy operation without manual adjustment.
- German "Sick" photocell registration：Reliable and accurate print registration and positioning
- LCD touch panel：Easily operable human-computer interface to access parameter changes and production monitoring
- Socket type IC circuit control：Automated control system can be easily replaced by socket plugin.
- Malfunction alarm / stop：Alarm & auto-stops for abnormal temperature / No material feed / Photocell tracking miss (3 times)
Available Optional Device
-
Various hole punches - Kidney/round/notch/butterfly/others -
- Various Hole-punch shapes available in standard or customized design. Fixed on the side of machine.
-

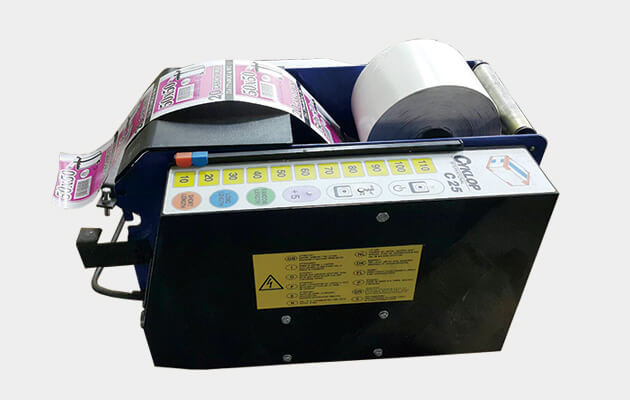

Labelling device -
- Apply paper & glue labels at the end of bag on roll rewinding cycles.
-
Rewinder EPC -
- Rewinder EPC can guide film for flat edge finished rolls for good presentation.
-

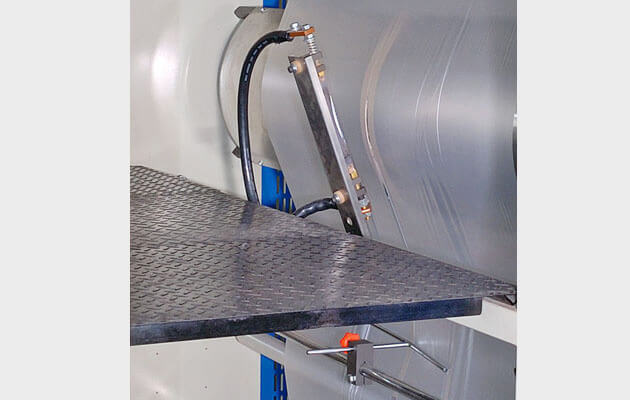

Pneumatic heat-slitting device -
- Heated sealing blades place parallel to material flow, slitting and sealing 2 layers for film at the same time as material feed. Jumbo film rolls can be slitted into several smaller rolls with 1 prinitng registry.
-

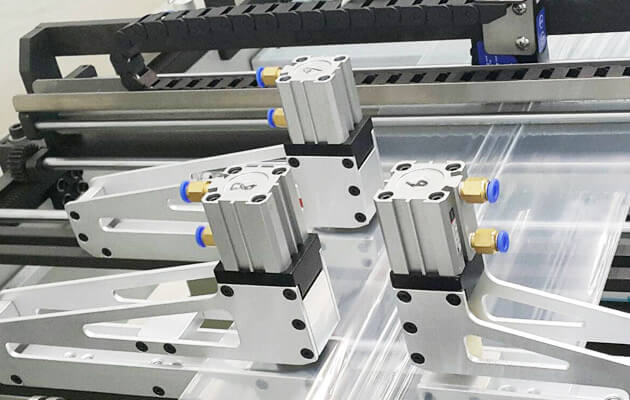

Horizontal sealing device -
- Additional up-down sealing unit seals film together parallelly to the material feed; used for Courier pockets, fold mouth sealing, etc.
-

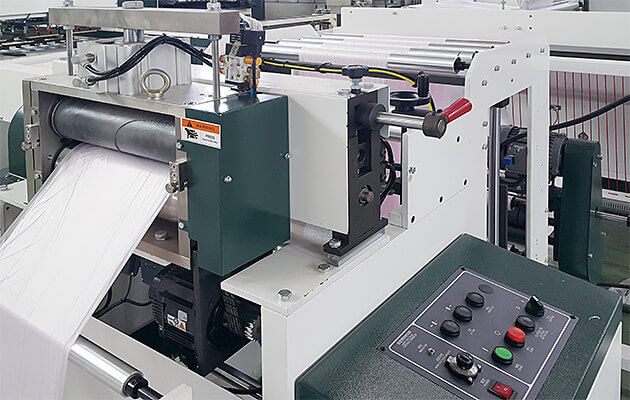

Interlock rollers (Sealing Isolation) -
- Interlock rollers synchonize and isolate film tension between sealing and outfeed to avoid sealing elongation.
-
Triangle folding device (Starseal) -
- Gussted tubic film ar efolding in half by passing triangular frame and pinch for Star-seal sealing.
-

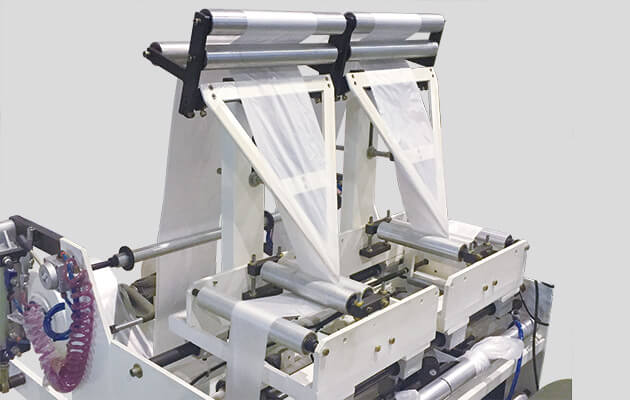

Double Triangle Folding device -
- Double triangle frames and pinch can fold in C/N/W styles before rewinder or for bottomseal star-seal bags.
-
Servo Driven rotary die cutter -
- Servo driven rotary cutter can cut seamlessly with high response speed. Rotary cutter has long service life. Vacuum suction for T-shirt bag waste
