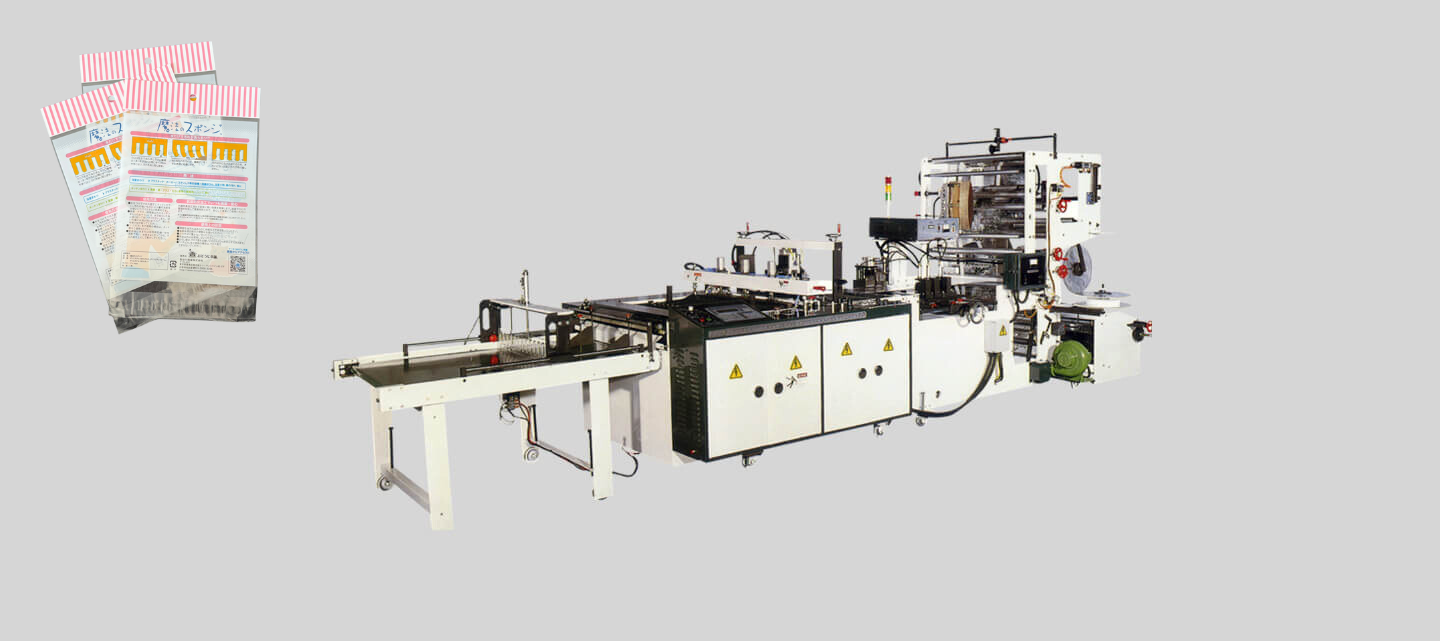

Side seal header bag making machine
SWC-V Header bag
- Hanging bag system - Includes side seal/ continuous ultrasonic sealing/ reinforce tape feeding/ round & butterfly hole punch/ self-adhesive tape & optional hot-melt glue applicator.
- 13-types folding - Folding/Gusseting/Slitting/Flips/Fold mouths done on the film passage guides.
- Side seal system : Sealing and cutting done simultaneously and pull by rocking take out belt conveyor. Finished bag collected on table or conveyor.
- Synchronized Feeding and cutting speed : Inverter controlled feeding matching main machine speed for easy operation without manual adjustment.
- German "Sick" photocell registration : Reliable and accurate print registration and positioning
- Auxiliary air-blown outfeed : Air blown assists material flow of outfeeding
- LCD touch panel : Easily operable human-computer interface to access parameter changes and production monitoring /li>
- Socket type IC circuit control : Automated control system can be easily replaced by socket plugin.
- Malfunction alarm / stop : Alarm & auto-stops for abnormal temperature / No material feed / Photocell tracking miss (3 times)
Available Optional Device

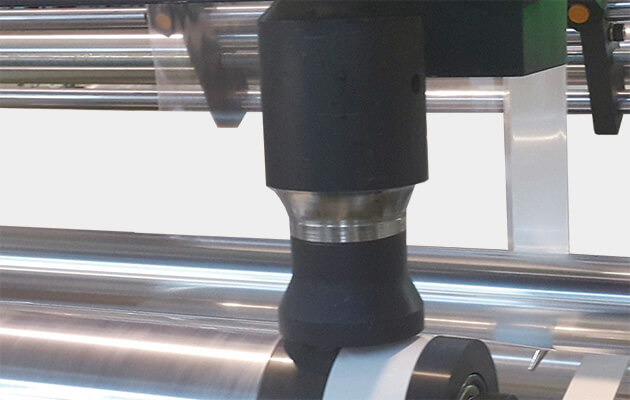

Continuous Ultrasonic welding -
- Decorative welding are done with ultrasonic and circular mold on passage of film. Ultrasonic units are easy operable with minimal adjustment required (auto-frequency matching)

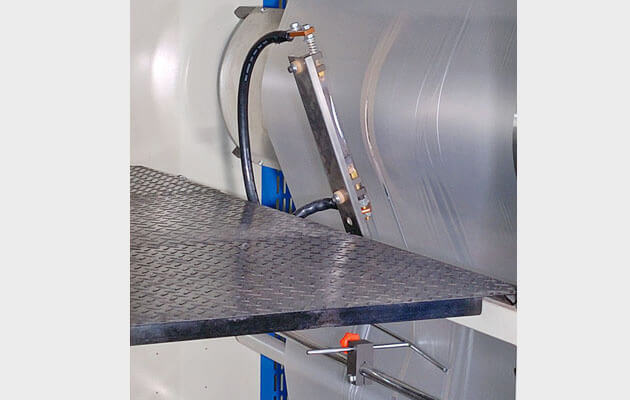

Pneumatic heat-slitting device -
- Heated sealing blades place parallel to material flow, slitting and sealing 2 layers for film at the same time as material feed. Jumbo film rolls can be slitted into several smaller rolls with 1 prinitng registry.

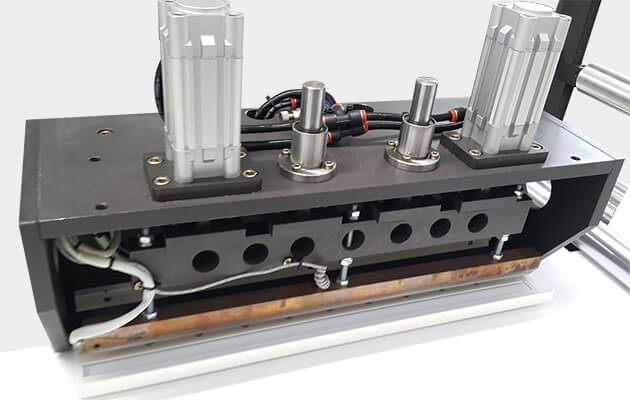

Horizontal sealing device -
- Additional up-down sealing unit seals film together parallelly to the material feed; used for Courier pockets, fold mouth sealing, etc.

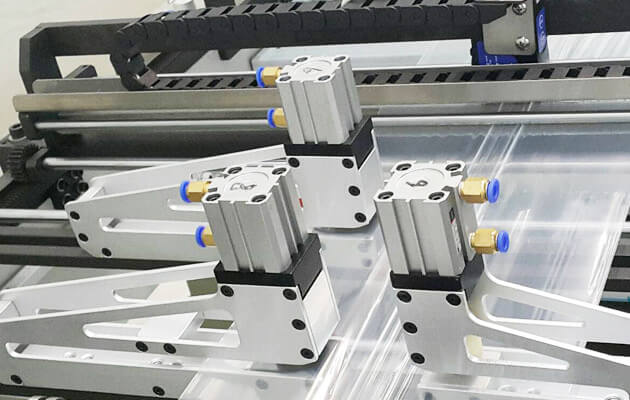

Auxiliary sealing -
- Heat-pressing and sealing on specific position on the bag, such as gusset gaps between 4 layer and 2 layer position to achieve stable and reliable sealing.

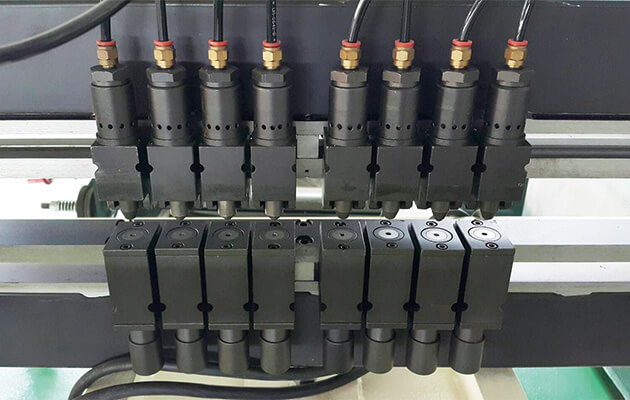

Various hole punches - Kidney/round/notch/butterfly/others -
- Various Hole-punch shapes available in standard or customized design. Fixed on the side of machine.
Glue-spray device -
- Spray or rolling-applying glue onto film. Used for Easy-open T-shirt bag, self-adhesive tape, bag on roll rewinder or special bag by customization.
Central Slitting device -
- Fixed slitting blade slitting film material during material feed.

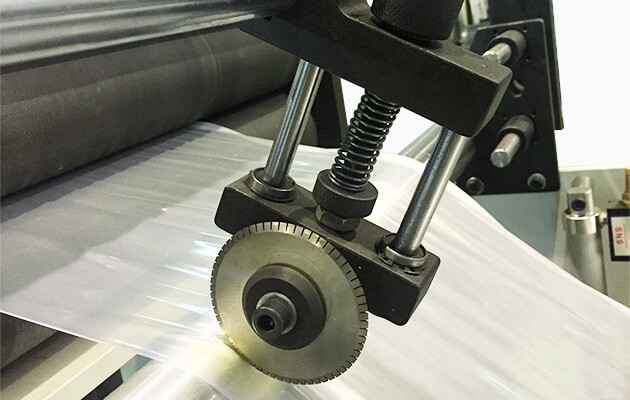

Continuous perforation device -
- Circular perforation blade are fixed and perforated line parallel to material feed direction.
Auxiliary heated pressor -
- Press and crease film such as CPP/BOPP to form definite folding line with heated pressure roller.

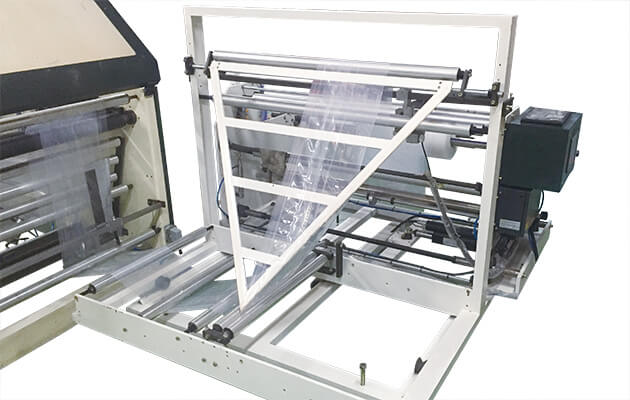

Triangle folding device -
- Sheet film is folded in half by passing triangular frame and pinch.

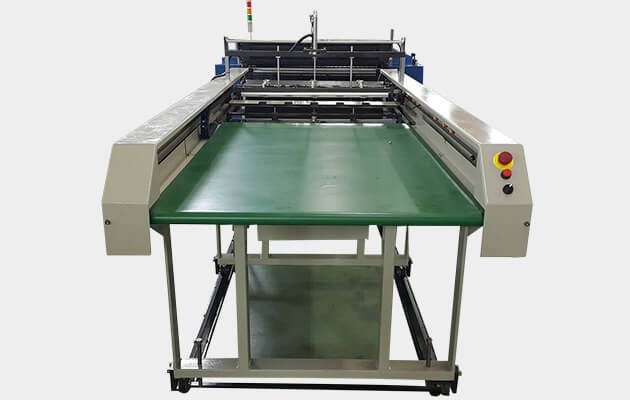

Standard conveyor -
- Standard conveyor unit moves after counts reach. Available in connected type and separated type.
Velvet covered rollers for PP film -
- Roller covered by velvet fabric to avoid scratch mark on transparent PP film.
